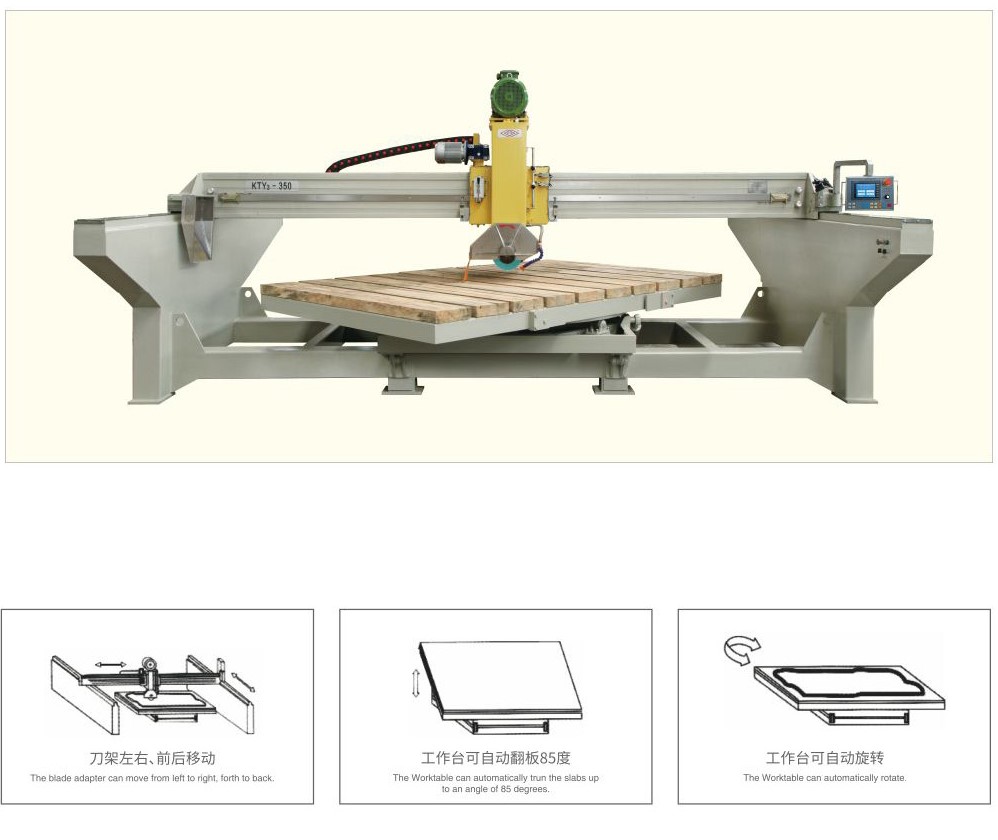

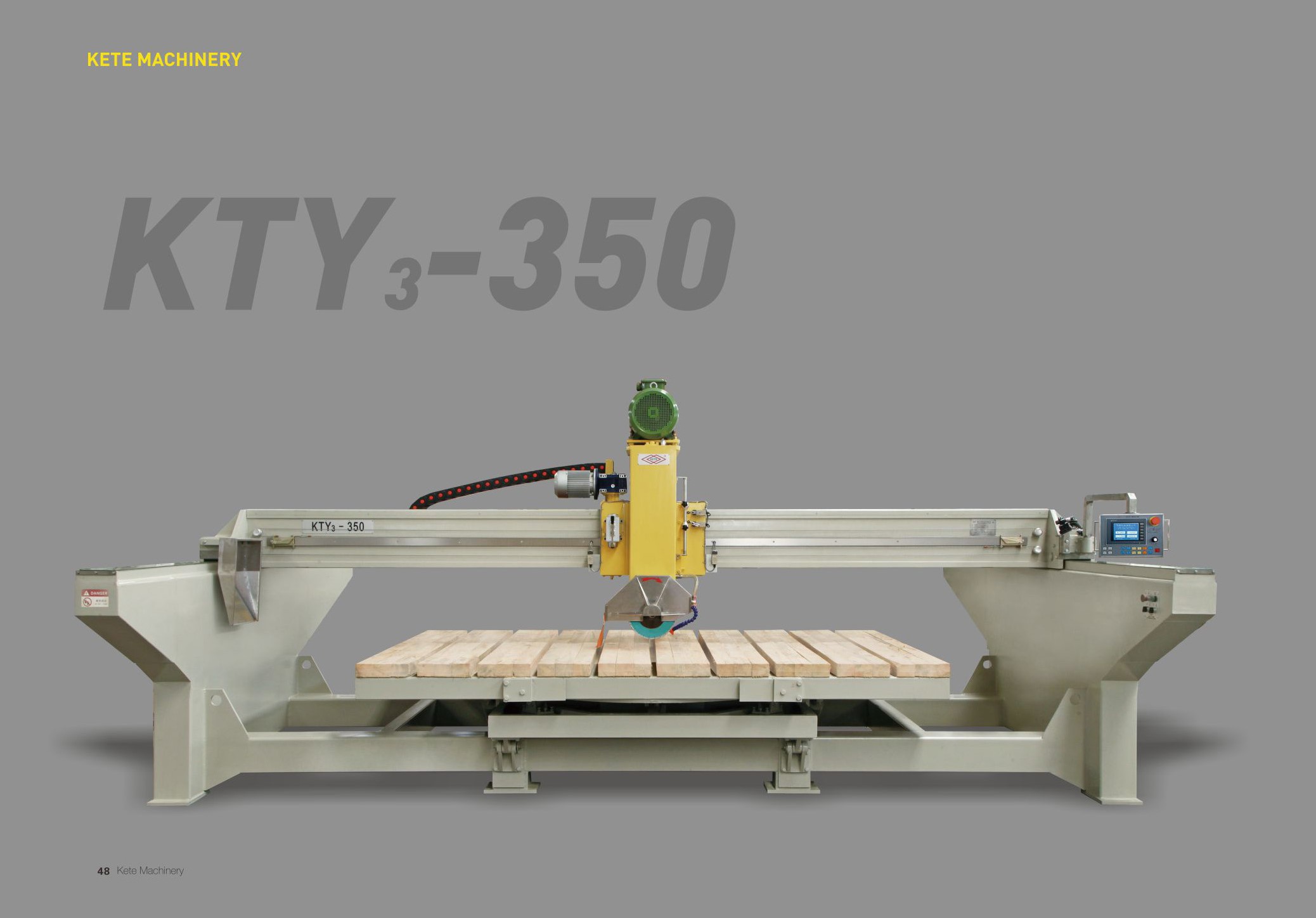

This bridge saw features automated control and high precision, making it an efficient solution for stone slab cutting.
It adopts the technology of microcomputer control, infrared cutting,and hydraulic rotation.The working table can rotate within the rangeof 0-360 degree in the horizontal direction, and rotates within the of0-85 degree in the vertical direction. For it's one-piece structure,with the advantages of high precision, convenient to install andadjust, easy to operate atc.
.jpg)
Key Features
● Microcomputer Control – Ensures precise and automated operation.
● Infrared Blade Alignment – Enhances cutting accuracy.
● Hydraulic Transmission – Provides smooth and stable movement.
● Versatile Worktable – Rotates 0–360° horizontally and tilts 0–85° vertically for flexible cutting angles.
● Integrated Structure – Easy to install and calibrate, offering high precision and user-friendly operation.
.jpg)
Package & Shipping
Package: air bubble film
After-sales Service
One year warranty
FAQ
Payment terms：30% Deposit,70% Balance Payment
Delivery time：30 days after deposit payment
| TECHNICAL PARAMETER |
| Model: KTY3-350 |
| Maximum Diameter of Sawpit |
| Ф 350~Ф 400mm |
| Maximum Processing Size |
| 3200x2000mm |
| Maximum Up-Down Travel of Cutter |
| 230mm |
| Cutting Thickness |
| 0~80mm |
| Rotation Angle of Worktabie |
| 0~360°(0°/45°190°1180°1270°) |
| Power of Main motor |
| 15kw |
| Machine Dimension (LxWxH) |
| 5600x4200x2280mm |
| Gross Weight |
| 6000kg |
