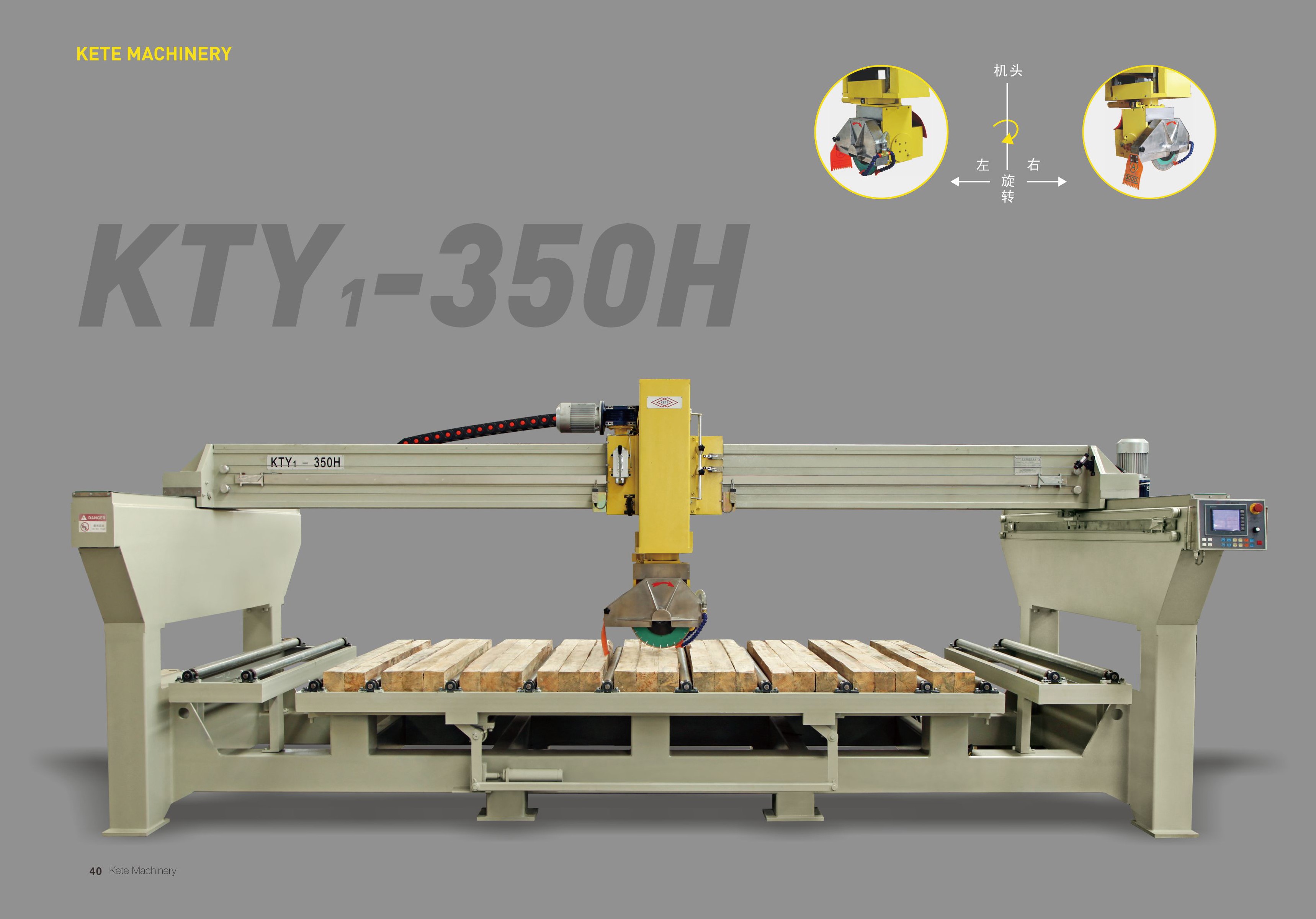

The KTY1-350H is a high-precision bridge saw for quartz and microcrystalline stone cutting, featuring hydraulic lifting rollers for smooth feeding and an integrated structure for seamless operation.
The KTY1-350H is a high-precision bridge saw designed for efficient quartz and microcrystalline stone slab cutting, featuring hydraulic lifting rollers on the worktable enable smooth feeding and an integrated structure for seamless operation.
.jpg)
.jpg)
Key Features
● Automated Precision – Microcomputer control with automatic blade alignment ensures high accuracy.
● Versatile Cutter Head – Rotates 90°, allowing flexible and precise cutting.
● Efficient Material Handling – Hydraulic lifting rollers on the worktable enable smooth feeding.
● Water-Cooled Spindle Motor – Enhances cutting efficiency and extends motor lifespan.

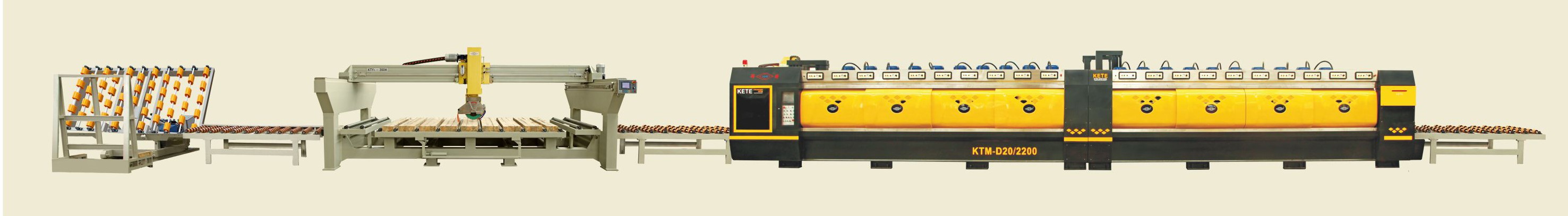

● Compact & Integrated Design – Space-saving, easy to install and transport, perfect for stone production lines.
Package & Shipping
Package: air bubble film
After-sales Service
One year warranty
FAQ
Payment terms：30% Deposit,70% Balance Payment
Delivery time：30 days after deposit payment
| TECHNICAL PARAMETER |
| Model: KTY1-350H |
| Maximum Diameter of Sawpit |
| Ф 350~Ф 400mm |
| Maximum Processing Size |
| 3250x1900mm |
| Maximum Up-Down Travel of Cutter |
| 250mm |
| Cutting Thickness |
| 0~80mm |
| Rotation of The Cutter |
| 0/90° |
| Pass-Through Width for Slab |
| 1950mm |
| Power of Main motor |
| 15kw |
| Machine Dimension (LxWxH) |
| 5600x3100x2300mm |
| Gross Weight |
| 4500kg |
