The KTNC-0425S is a 5-axis CNC bridge saw with 45° miter cutting and milling capabilities for sink cutouts, faucet holes, and more. Its touchscreen control, CAD/CAM software, and onboard camera ensure precision and efficiency, while the laser guide, automatic lubrication, and hydraulic tilting table enhance usability. IoT-enabled remote support and local spare parts ensure seamless after-sales service.
CLICK TO SEE A LIST OF VIDEOS OF THIS MACHINE!
The KTNC-0425S is a 5-axis CNC bridge saw with a monoblock frame and 45° miter cutting, ensuring high precision and minimal waste. In addition to saw blade cutting, it features milling cutters for drilling, allowing for sink cutouts, faucet holes, and other intricate processing.
The touchscreen control, CAD/CAM software, and onboard camera streamline operation, while the laser guide and automatic lubrication system enhance accuracy and durability. The hydraulic tilting table simplifies slab handling, and IoT-enabled remote support ensures seamless after-sales service with local spare parts availability.
INDUSTRIAL CAMERA
The camera is used to capture images of materials within the workbench range, and then plan material processing graphics and programs directly on the image through the touch screen, automatically identifying the cutting origin coordinates to achieve what you see is what you get, greatly reducing processing time and making processing more intuitive.
MILLING CUTTER / DRILLING
In addition to saw blade cutting,there are also milling cutters that can drill holes, such as opening sink holes,and faucet holes etc.

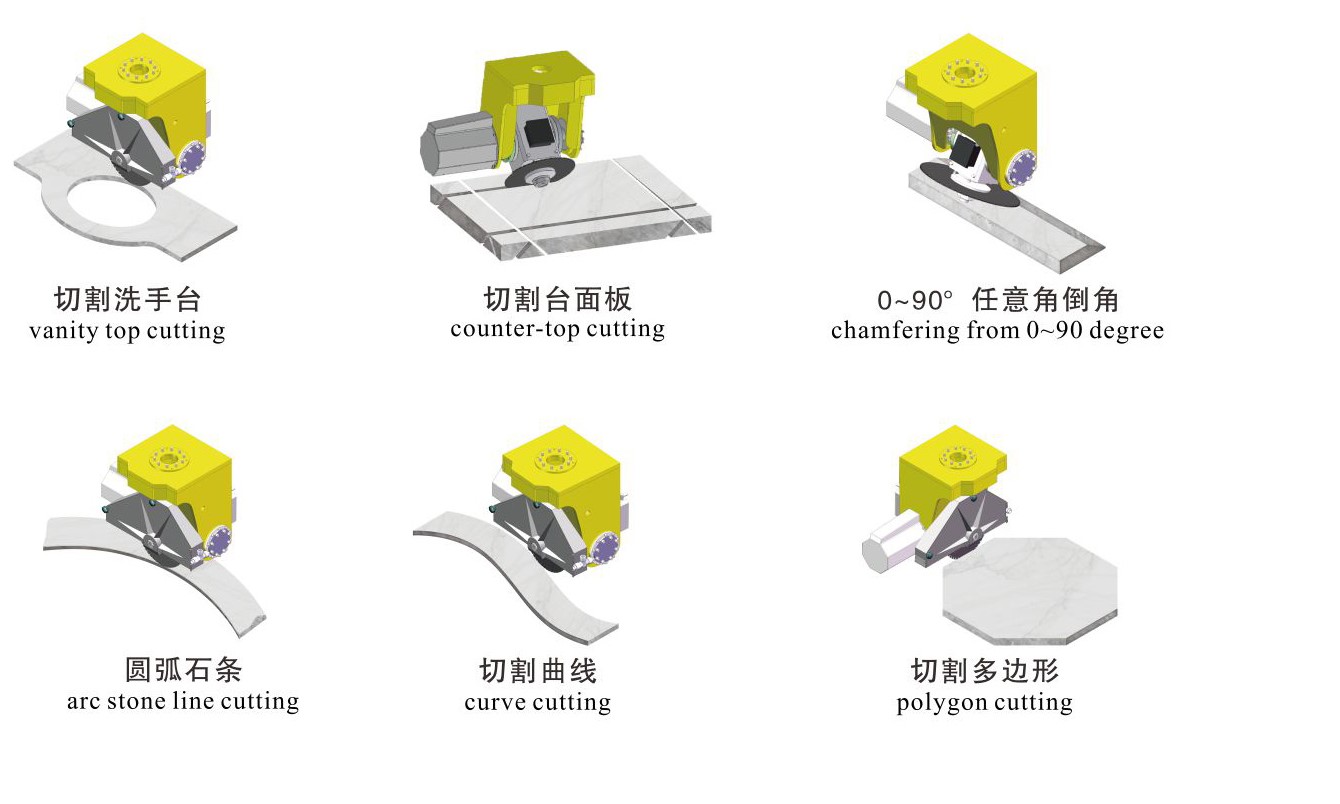

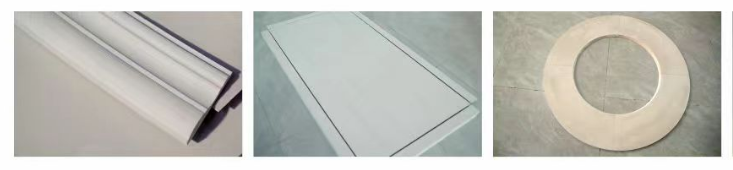

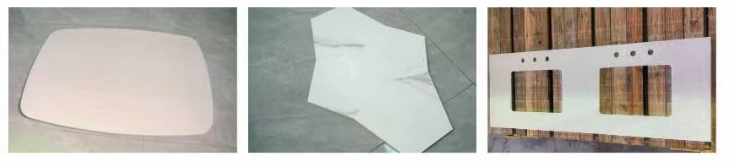

VERSATILE CUTTING
.jpg)
LASER CUTTING GUIDE
The machine may be a CNC controlled machine, but it's still possible to use the machine in manual or semi automatic mode as if it was a standard bridge saw, With the assistance of a laser inputting simple slicing data can quickly cut rectangular shaped sheets.
AUTOMATIC LUBRICATION SYSTEM
Lubrication is taken care of via an automated system which can be programmed to deliver as necessary.

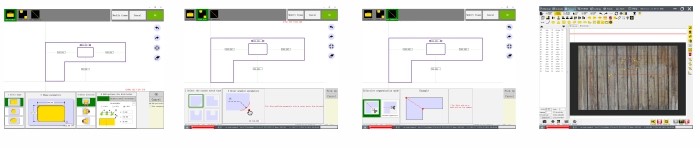

COUNTERTOP DESIGN MODULE

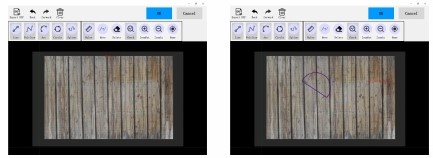

MANUALLY SHAPE CAPTURE MODULE
ORTHOGONAL CUTTING FUNCTION
SUMMARY OF FEATURES
● Monoblock Frame – Compact, stable, and easy to install
● 45° Miter Cutting – Precise angled cuts for seamless edges
● Fully 5-Axis CNC Control – Enables complex and intricate cutting
● Touchscreen Control Panel – User-friendly interface for easy operation
● Advanced CAD/CAM Software – Optimized cutting with minimal waste
● Onboard Overhead Camera – Enhances precision and monitoring
● Automatic Lubrication System – Ensures smooth and long-lasting operation
● Hydraulic Tilting Table – Simplifies slab loading and unloading
● Laser Cutting Guide – Provides visual blade positioning for manual operation
● IoT-Enabled Troubleshooting – Remote diagnostics for seamless support
● Local Parts & Service – Quick access to spare parts and maintenance assistance
Package & Shipping
Package: air bubble film
After-sales Service
One year warranty
FAQ
Payment terms：30% Deposit,70% Balance Payment
Delivery time：30 days after deposit payment
| TECHNICAL PARAMETER |
| Model: KTNC-0425S |
| DIMENSIONS |
| 5300/5960 x 3000 x 2500 mm |
| 208.6/234.6 x 118.1 x 98.4 in |
| TABLE SIZE |
| 3200/3600 (OPTIONAL) x 2000 mm |
| 125.9/141.7 (OPTIONAL) x 78.7 in |
| TABLE ROTATION |
| NO |
| TABLE TILT |
| YES |
| X STROKE(CROSS TRAVEL STROKE) |
| 3500/3760 mm / 137.7/148 in |
| Y STROKE(LONG TRAVEL STROKE) |
| 2200 mm / 86.6 in |
| Z STROKE(HEAD UP AND DOWN) |
| 250 mm / 9.8 in |
| BLADE DIAMETER(RECOMMENDED) |
| 350 mm / 13.7 in |
| BLADE DIAMETER(MAX) |
| 400 mm / 15.7 in |
| BLADE SPEED |
| 0-2930 R/MIN |
| CUTTING THICKNESS |
| 0-80 mm / 0-3.1 in |
| HEAD TILT |
| 0/45° |
| HEAD ROTATION |
| ±360° |
| MAIN MOTOR POWER |
| 15 KW / 20 HP |
| SECONDARY MOTOR POWER |
| 4.5 KW / 6 HP |
| TOTAL POWER |
| 29 KW / 39 HP |
| WATER CONSUMPTION |
| 4m³/h / 141ft³/h |
| GROSS WEIGHT |
| 3600/4000KG |
| 7937/8818LB |
| TECHNICAL PARAMETER |
| Model: KTNC-0425S |
| DIMENSIONS |
| 5300/5960 x 3000 x 2500 mm |
| 208.6/234.6 x 118.1 x 98.4 in |
| TABLE SIZE |
| 3200/3600 (OPTIONAL) x 2000 mm |
| 125.9/141.7 (OPTIONAL) x 78.7 in |
| TABLE ROTATION |
| NO |
| TABLE TILT |
| YES |
| X STROKE(CROSS TRAVEL STROKE) |
| 3500/3760 mm / 137.7/148 in |
| Y STROKE(LONG TRAVEL STROKE) |
| 2200 mm / 86.6 in |
| Z STROKE(HEAD UP AND DOWN) |
| 250 mm / 9.8 in |
| BLADE DIAMETER(RECOMMENDED) |
| 350 mm / 13.7 in |
| BLADE DIAMETER(MAX) |
| 400 mm / 15.7 in |
| BLADE SPEED |
| 0-2930 R/MIN |
| CUTTING THICKNESS |
| 0-80 mm / 0-3.1 in |
| HEAD TILT |
| 0/45° |
| HEAD ROTATION |
| ±360° |
| MAIN MOTOR POWER |
| 15 KW / 20 HP |
| SECONDARY MOTOR POWER |
| 4.5 KW / 6 HP |
| TOTAL POWER |
| 29 KW / 39 HP |
| WATER CONSUMPTION |
| 4m³/h / 141ft³/h |
| GROSS WEIGHT |
| 3600/4000KG |
| 7937/8818LB |
