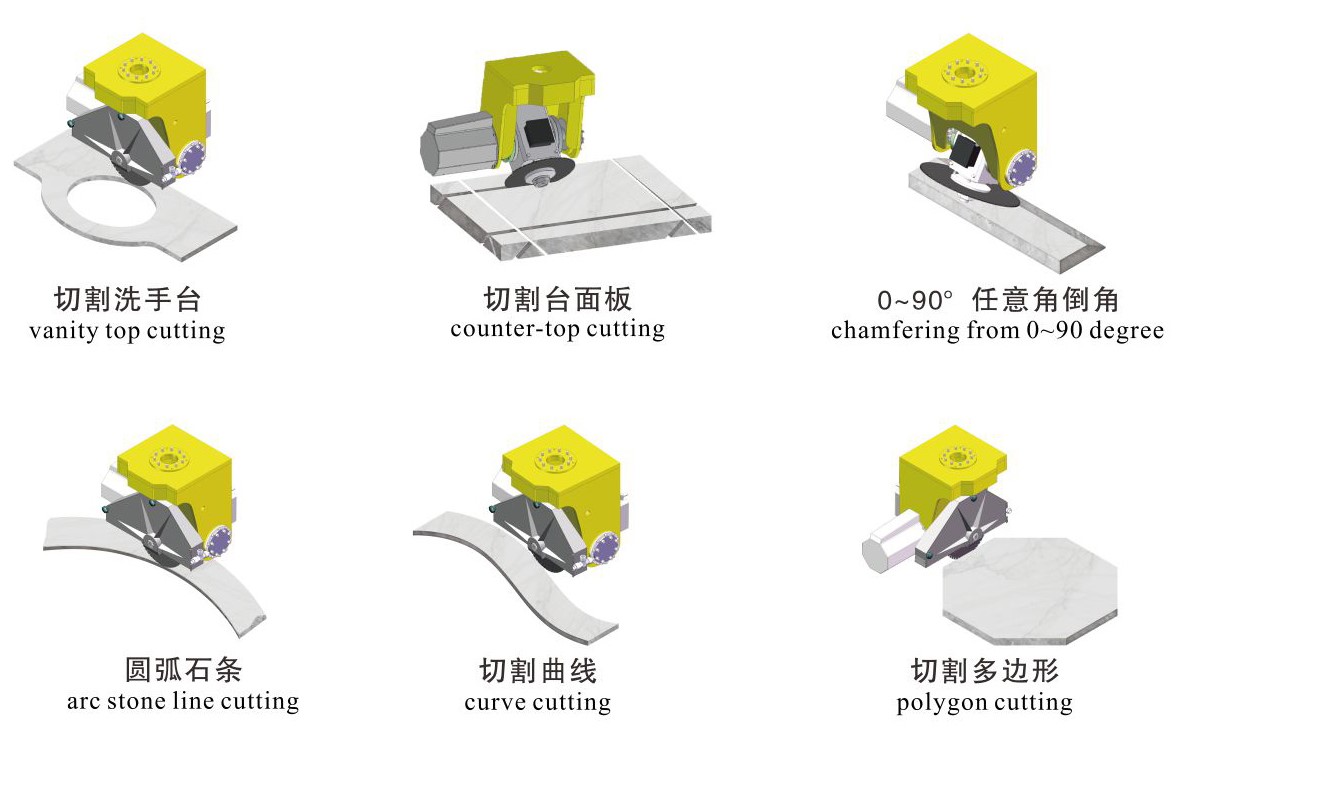

This machine is a mono-block 5-axis CNC machine.Besides straight cutting,this machine is also able to make polygon cutting,straight/arc stone line cutting,curve cutting,vanity top cutting,internal/external round shape cutting and chamfering.

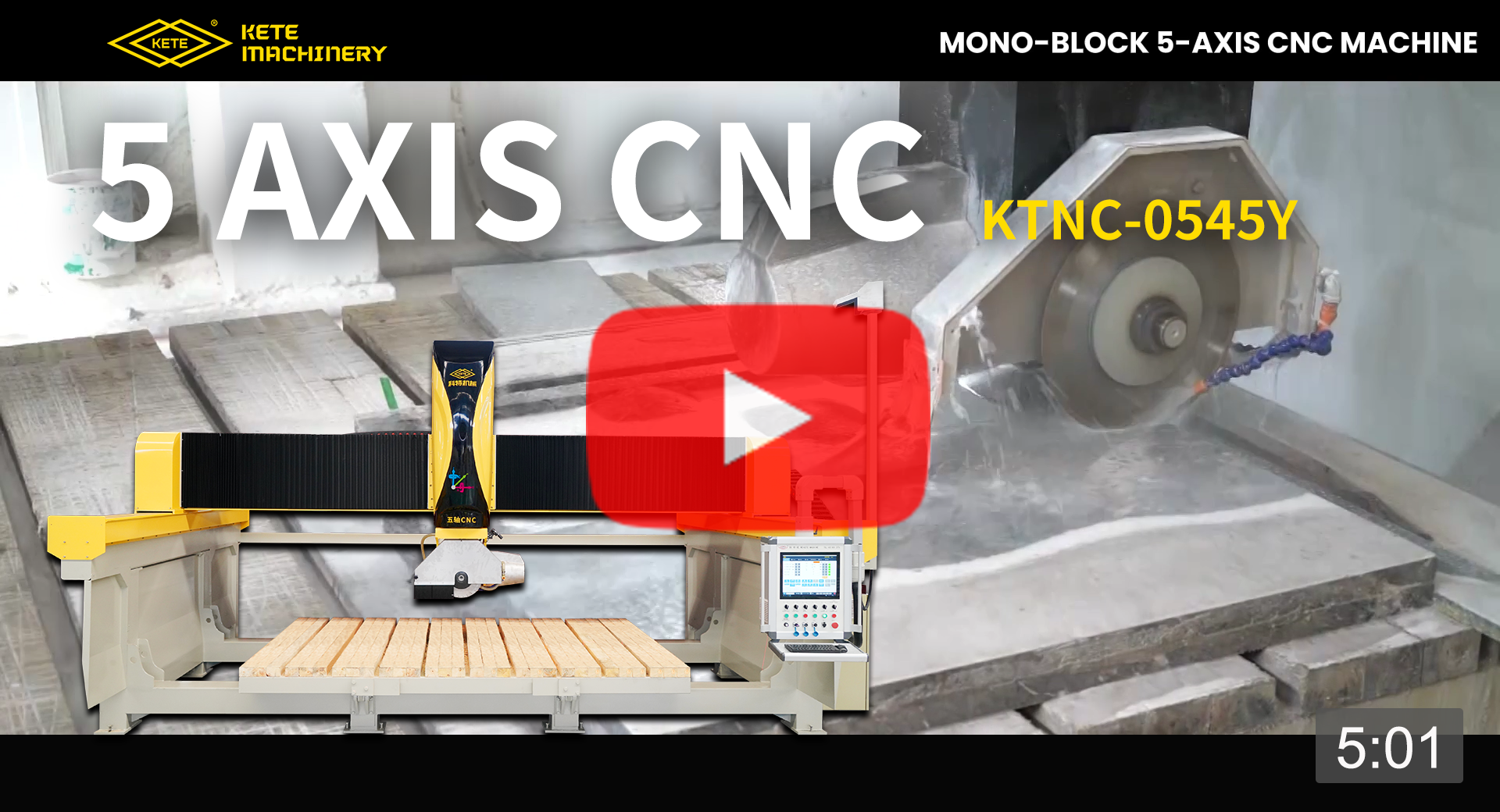

CLICK TO SEE A LIST OF VIDEOS OF THIS MACHINE!
This machine is a mono-block 5-axis CNC machine.Besides straight cutting,this machine is also able to make polygon cutting,straight/arc stone line cutting,curve cutting,vanity top cutting,internal/external round shape cutting and chamfering. Featuring as smaller installation space,higher precisement and efficiency,more simple operation,this model is your best choice for processing stone.
.jpg)
5807.jpg)
.jpg)

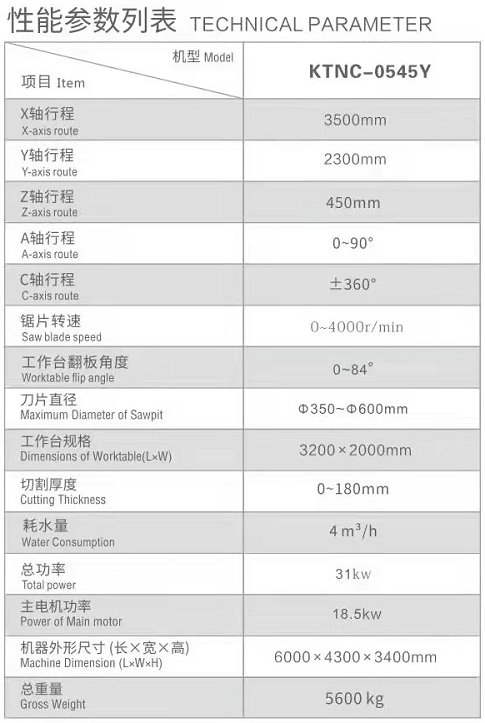

| TECHNICAL PARAMETER |
| Model: KTNC-0545Y |
| Machine dimensions (L×W×H) |
| 6000×4300×3400 mm |
| 236.2×169.3×133.9 in |
| Worktable dimensions (L×W) |
| 3200×2000 mm |
| 126.0×78.7 in |
| X-axis travel |
| 3500 mm / 137.8 in |
| Y-axis travel |
| 2300 mm / 90.6 in |
| Z-axis travel |
| 450 mm / 17.7 in |
| A-axis travel |
| 0~90° |
| C-axis travel |
| ±360° |
| Saw blade speed |
| 0~4000 r/min |
| Worktable flip angle |
| 0~84° |

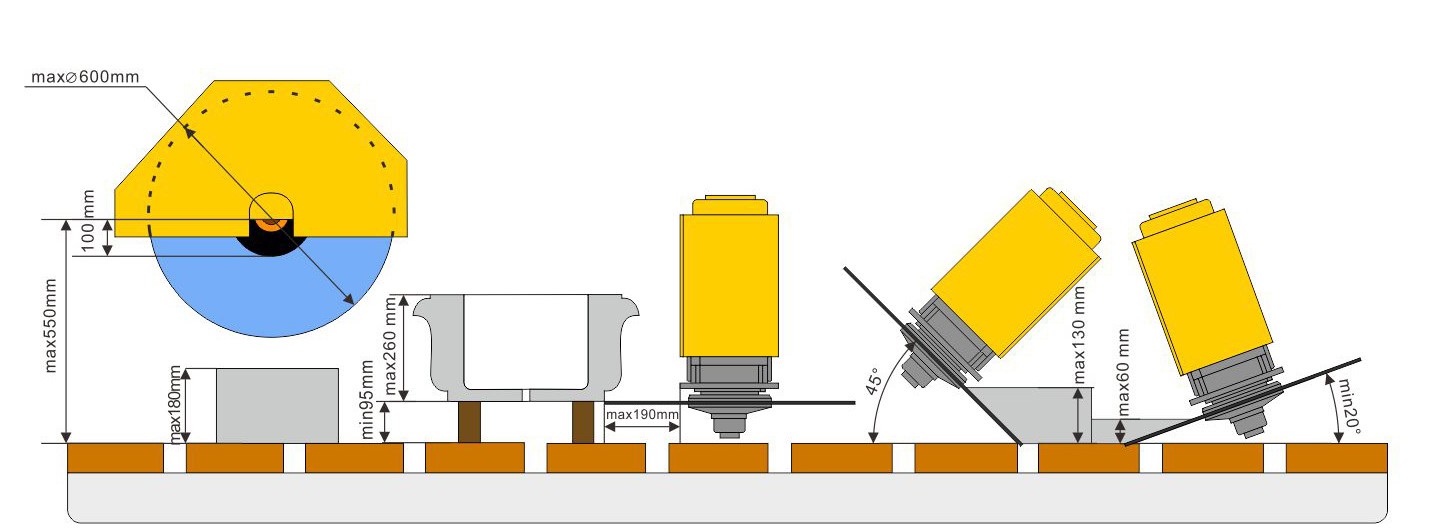

| Maximum blade diameter |
| Φ350~Φ600 mm / Φ13.8~Φ23.6 in |
| Cutting thickness |
| 0~180 mm / 0~7.1 in |
| Water consumption |
| 4 m³/h / 1057 gal/h |
| Total power |
| 31 kW / 41.6 hp |
| Main motor power |
| 18.5 kW / 24.8 hp |
| Gross weight |
| 5600 kg / 12346 lbs |
Package & Shipping
Package: air bubble film
After-sales Service
One year warranty
FAQ
Payment terms：30% Deposit,70% Balance Payment
Delivery time：30 days after deposit payment
