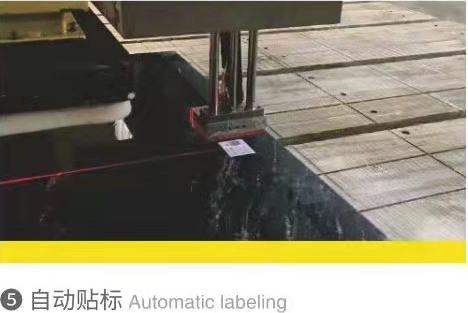

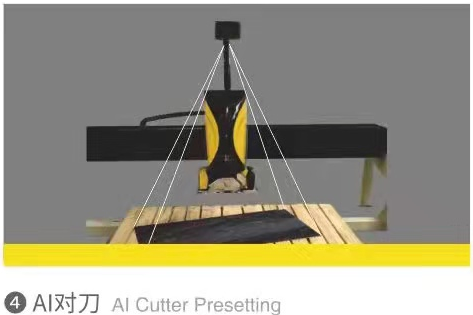

Combining the robust performance of a traditional bridge cutter with next-generation automation, the KT-P30 sets a new standard in intelligent stone processing. Equipped with AI Cutter Presetting, automatic labeling, and a sucker-assisted slab moving system, this machine streamlines production with minimal manual intervention—boosting both accuracy and throughput.
.jpg)
Combining the robust performance of a traditional bridge cutter with next-generation automation, the KT-P30 sets a new standard in intelligent stone processing. Equipped with AI Cutter Presetting, automatic labeling, and a sucker-assisted slab moving system, this machine streamlines production with minimal manual intervention—boosting both accuracy and throughput.
Powered by advanced design software, the KT-P30 allows operators to generate optimized cutting plans through three flexible modes:

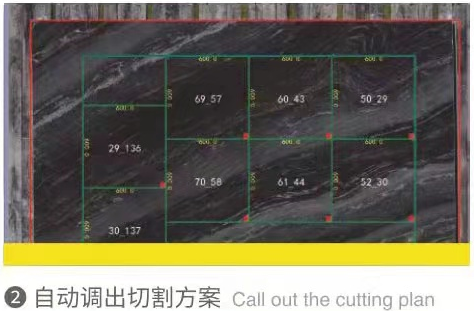

· Automatic Optimization – Maximize yield with AI-driven material usage

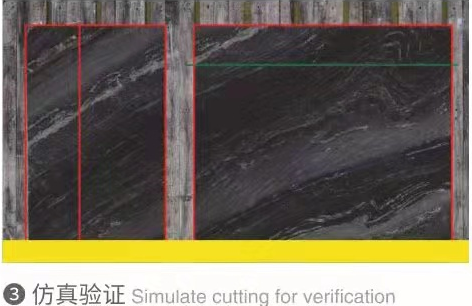

· Picture Planning – Visualize and customize layouts with ease
· Artificial Planning – Apply expert manual control for specialized projects

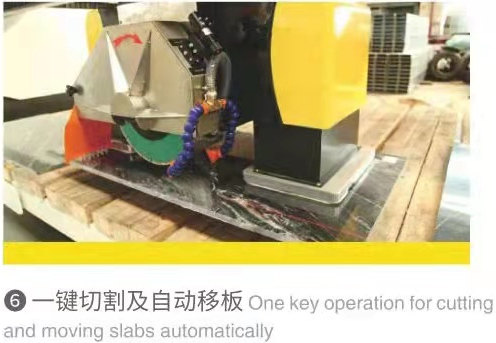

Once the plan is set, execute flawless cuts with just one-key operation. The machine automatically processes slabs according to your design, delivering consistent high-quality results while significantly reducing processing time and material waste.
Ideal for modern workshops aiming for full-scale automation, the KT-P30 enhances productivity, improves resource efficiency, and delivers precision you can trust—every time.
.jpg)

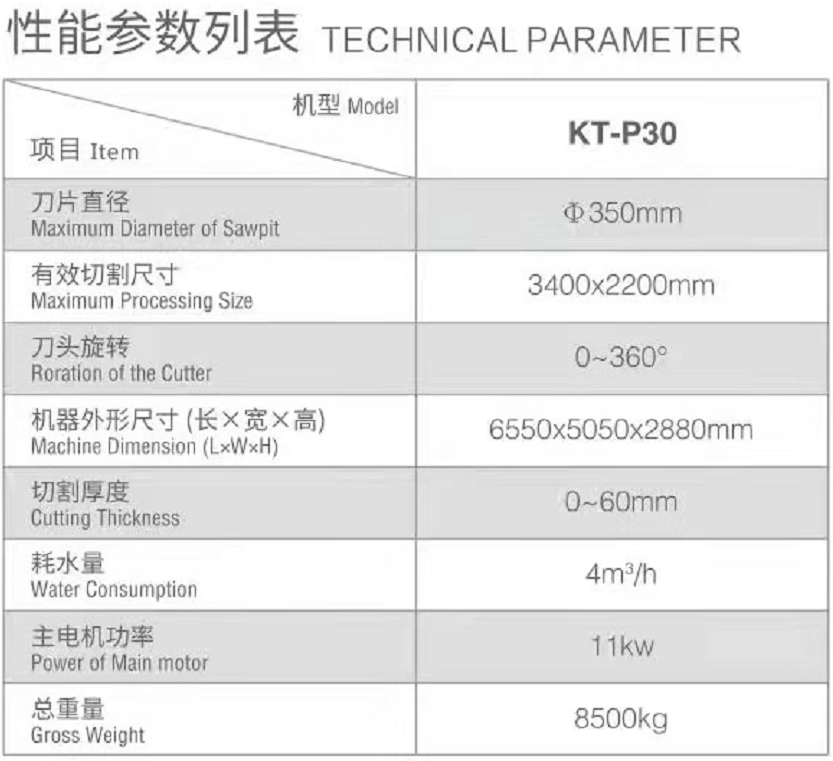

| TECHNICAL PARAMETER |
| Model: KT-P30 |
| Maximum Diameter of Sawblade |
| Φ350 mm |
| Maximum Cutting Size |
| 3400×2200 mm |
| Cutter Head Rotation |
| 0~360° |
| Air Working Pressure |
| 0.4~0.6 MPa |
| Machine Dimension (L×W×H) |
| 6550×5050×2900 mm |
| Cutting Thickness |
| 0~60 mm |
| Water Consumption |
| 4 m³/h |
| Power of Main Motor |
| 11 kW |
| Total Power |
| 19 kW |
| Gross Weight |
| 8500 kg |
Package & Shipping
Package: air bubble film
After-sales Service
One year warranty
FAQ
Payment terms:30% Deposit,70% Balance Payment
Delivery time:45 days after deposit payment
