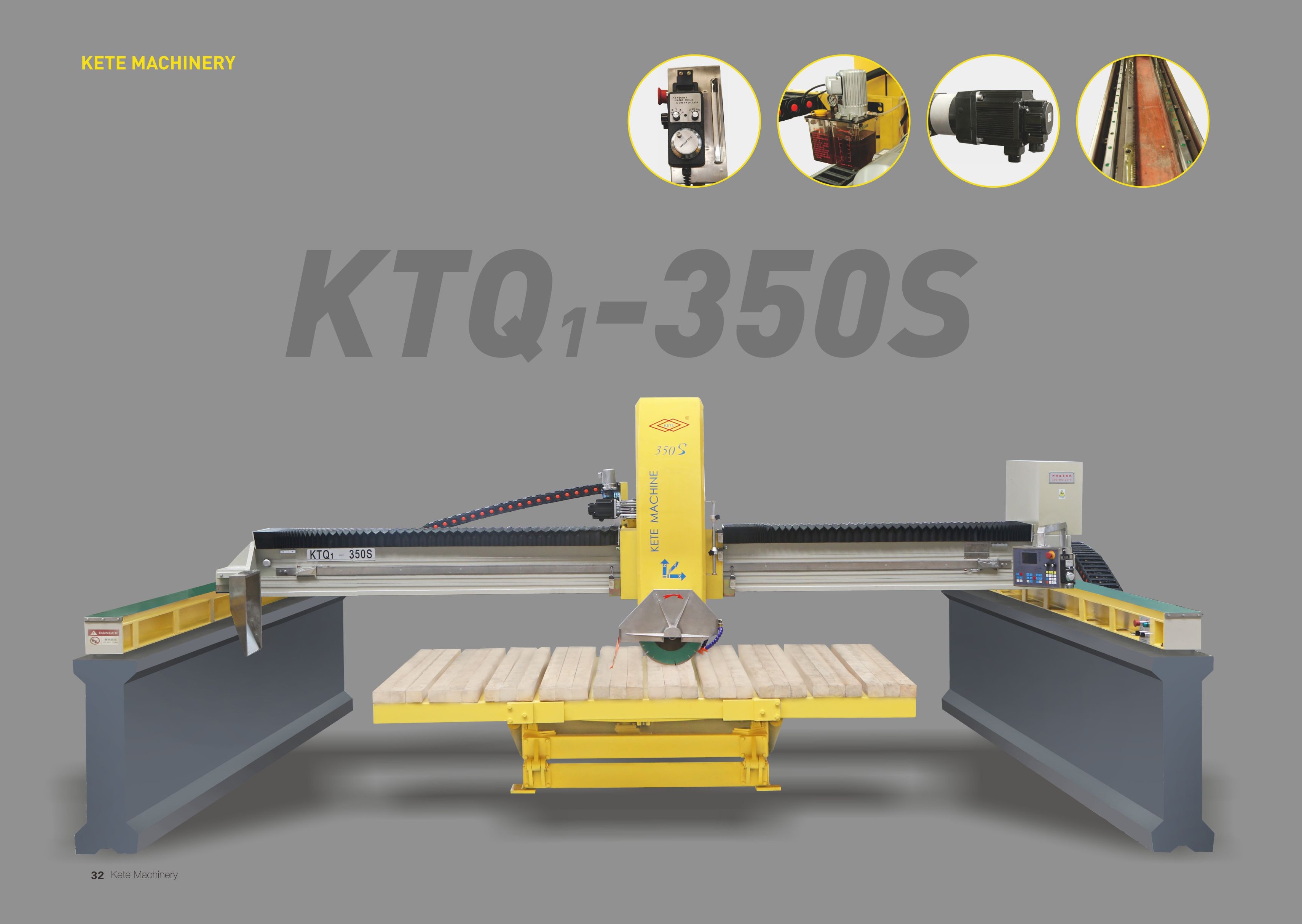

The KTQ1-350S combines precision linear guides, servo control, and an electronic handwheel for exceptional speed and accuracy. Its pulse-based positioning ensures fast, precise cutter movement, while the intuitive interface allows for effortless operation. Designed for stability and efficiency, this machine delivers professional-grade performance ideal for high-quality decorative finishing.
The KTQ1-350S combines precision linear guides, servo control, and an electronic handwheel for exceptional speed and accuracy. Its pulse-based positioning ensures fast, precise cutter movement, while the intuitive interface allows for effortless operation. Designed for stability and efficiency, this machine delivers professional-grade performance ideal for high-quality decorative finishing.
.jpg)
.jpg)
.jpg)

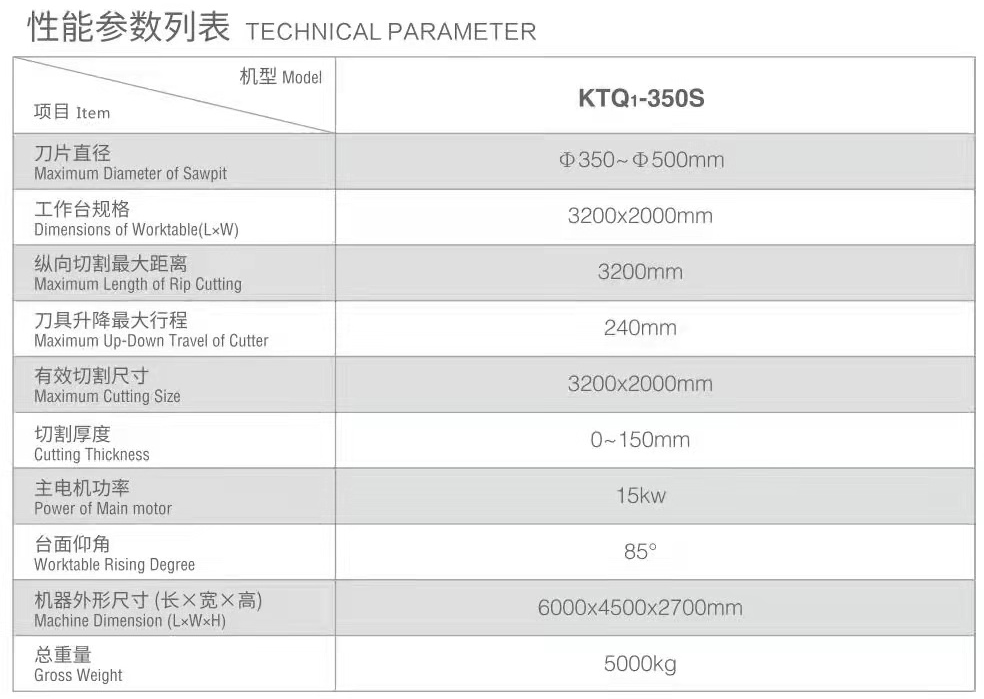

| TECHNICAL PARAMETER |
| Model: KTQ1-350S |
| Maximum Diameter of Sawblade |
| Φ350 ~ Φ500 mm |
| Dimensions of Worktable (L×W) |
| 3200 × 2000 mm |
| Maximum Length of Rip Cutting |
| 3200 mm |
| Maximum Up-Down Travel of Cutter |
| 240 mm |
| Maximum Cutting Size |
| 3200 × 2000 mm |
| Cutting Thickness |
| 0 ~ 150 mm |
| Power of Main Motor |
| 15 kw |
| Worktable Tilt Angle |
| 85° |
| Machine Dimension (L×W×H) |
| 6000 × 4500 × 2700 mm |
| Gross Weight |
| 5000 kg |
Package & Shipping
Package: air bubble film
After-sales Service
One year warranty
FAQ
Payment terms：30% Deposit,70% Balance Payment
Delivery time：7 days after deposit payment
